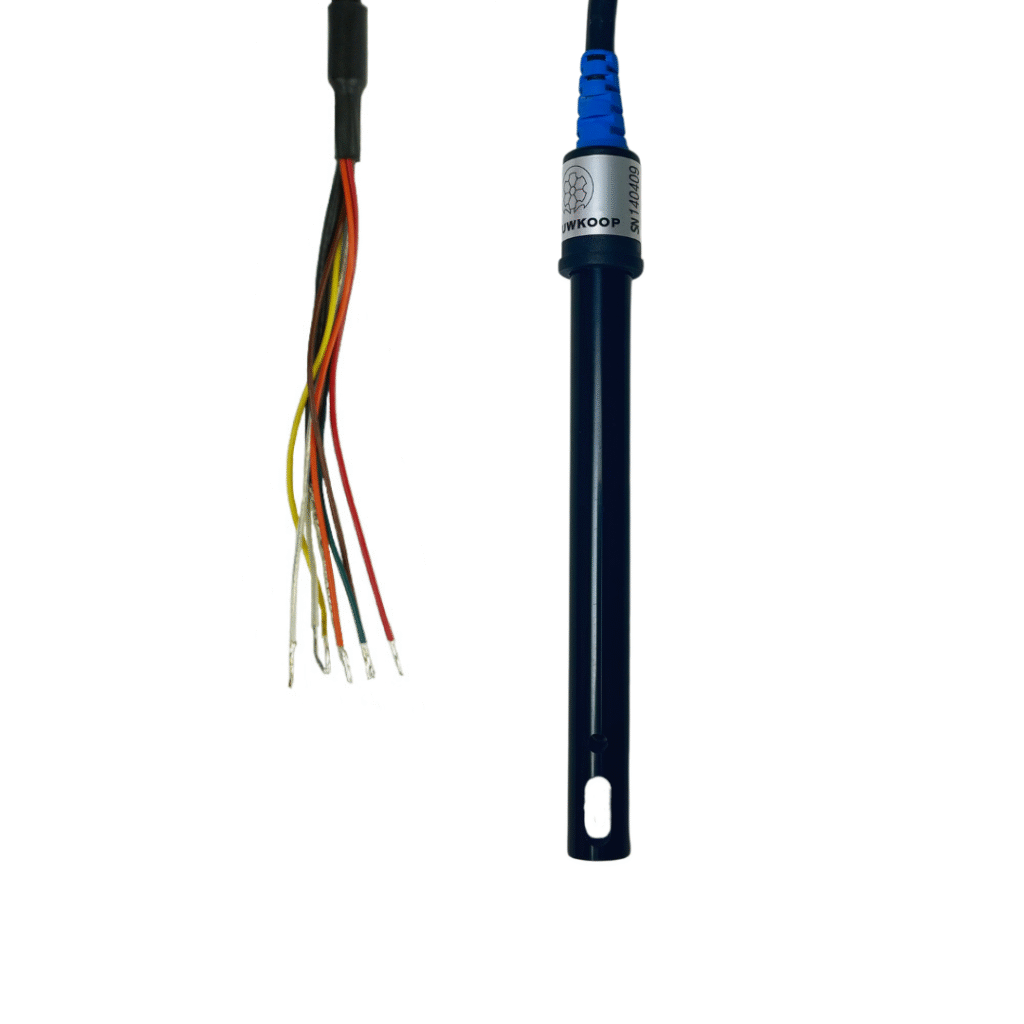

EC+Pt100 sensor with oval opening for in-line measurements, EC5106

Article number: EC5106

€299,00 excl. VAT

Pt100 temperature element and EC sensor (oval opening) for continuous measurements in water with 5-meter cable.

Downloads for this product

English

Connection diagram

Return within 30 days
Not satisfied, money back
Free shipping from €50
Always pay securely

Product description

EC sensor with RTD Pt100

The sensor element is in the oval opening. On the EC5105, the sensor element is on the bottom.

Specifications:

Material: epoxy housing, graphite sensor
Cell constant: K = 1.0
Temperature sensor: RTD Pt100
Dimensions: diameter 12 mm - length 110 mm
cable length: 5 metres
Maximum working temperature: 80 °C
Maximum pressure: 10 bar @ 20 °C

Statistics number: 9027.90.00
