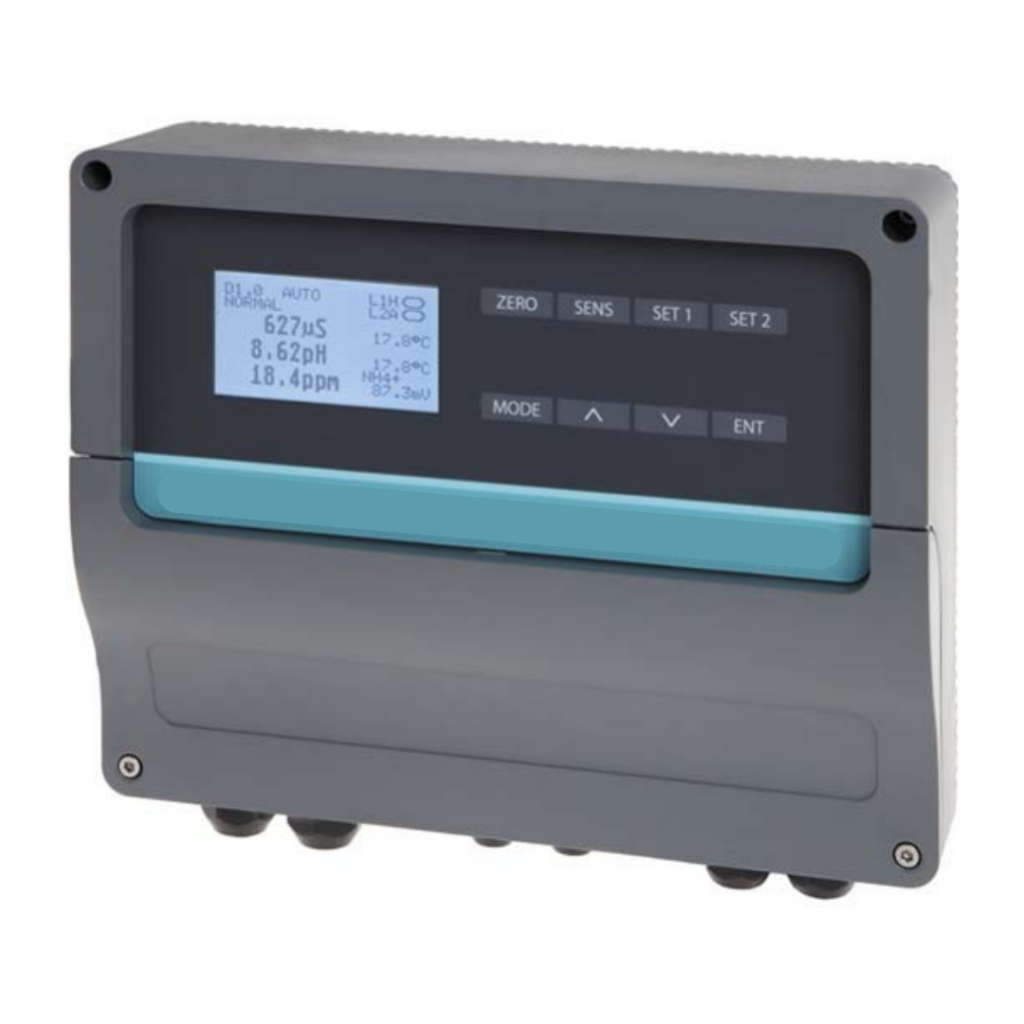

Advanced EC-pH-ORP-ISE controller with precise PID Control, 2 set points, 2 relay contacts, wall mounted, EP3050

The EP3050 is an advanced multiparameter controller for the precise measurement and control of EC, pH, ORP (Redox), and ISE (Cl-, NO3-, NH4+, Ca++). Thanks to the integrated PID control, the measured values are continuously monitored and automatically corrected, ensuring stable water quality even under varying process conditions.

The flexibility of use of the various types of sensors make the instrument suitable for many applications and types of systems.

Manual and automatic temperature compensation are available when an RTD Pt100 or RTD Pt1000 is connected. When an RTD sensor is connected, the instrument also displays the measured temperature.

The instrument offers:
- Display of the measurement within the range of the installed sensor
- Automatic measurement check function
- Alarm in the event of min/max values being exceeded, excessive relay activation or the presence of logic inputs
- Dual programmable analogue output for data logging or PID control
- Hold/alarm function activated via two external potential-free contacts
- Automatic or manual autoclean function

Specifications

The following parameters can be selected via the three main inputs:

• Input A: EC / TDS / specific resistance / indirect
• Input B: ISE / pH / redox
• Input C: ISE / pH / redox

Pt100 or Pt1000 (special input)

• 2 logic inputs for hold / alarm function
• 2 logic inputs for hold / alarm function

Measurement ranges for EC, TDS and specific resistance:

• Cell K-value: 0.01 – 0.1 – 0.5 – 1.0 – 10
• from 200.0 nS to 2000 mS
• 100.0 ppb to 0.01 ppt
• from 100 Mohm to 0.5 ohm

pH and redox scales:

• from 0.00 to 14.00 pH
• from -2000 to +2000 mV

ISE scales:

• Ions: Cl⁻, NO₃⁻, NH₄⁺, Ca²⁺, others customisable
• from 0.01 to 1000 ppm, others customisable

Temperature:

• from -10.0 to 110.0 °C / 14.0 to 230.0 °F
• Automatic or manual temperature compensation

- 2 setpoints with min/max function, programmable hysteresis and delay time
- Analogue output: 0–20 mA or 4–20 mA (isolated), for PID control or measurement transmission
- Alarm relay for min/max, with on/off function
- Two configuration levels with access code, configurable by the operator
- Two digital logic inputs for hold or alarm function, selectable
- Power supply: 85–264 Vac, 50/60 Hz, 5 VA (Alternative option: 9/36 Vdc – 24 Vac available on request)
- Protection class: IP66
- Dimensions: 256 x 230 x 89 mm

Statistics number: 9027.80.20
